FLX-S-DT-X9

flipx standard with green light 1

FLX-S-DT-X9

  • Anti-masking : No
  • Pet immunity : Yes
  • Dual technology : Yes
  • Wireless detector : No
  • IR distance detection [m] : 12
  • PIR technology : Passive infrared
Enquire
Features
Downloads


ENVIRONMENTAL

Working Temperature (°C)From -20 to 50
Max. Working Humidity [%]95
Weight0.135
TamperLid
OutdoorNo
Dimensions (H x W x D) [mm]129.5 x 62 x 50.9

SPECIFICATIONS

IR distance detection [m]12
Surveillance angle (°)85
Anti-maskingNo
Voltage supply [VDC]From 9.5 to 16
PIR technologyPassive infrared
Consumption [mA]From 16 to 16
Current min [mA]16
Dual technologyYes
Pet immunityYes

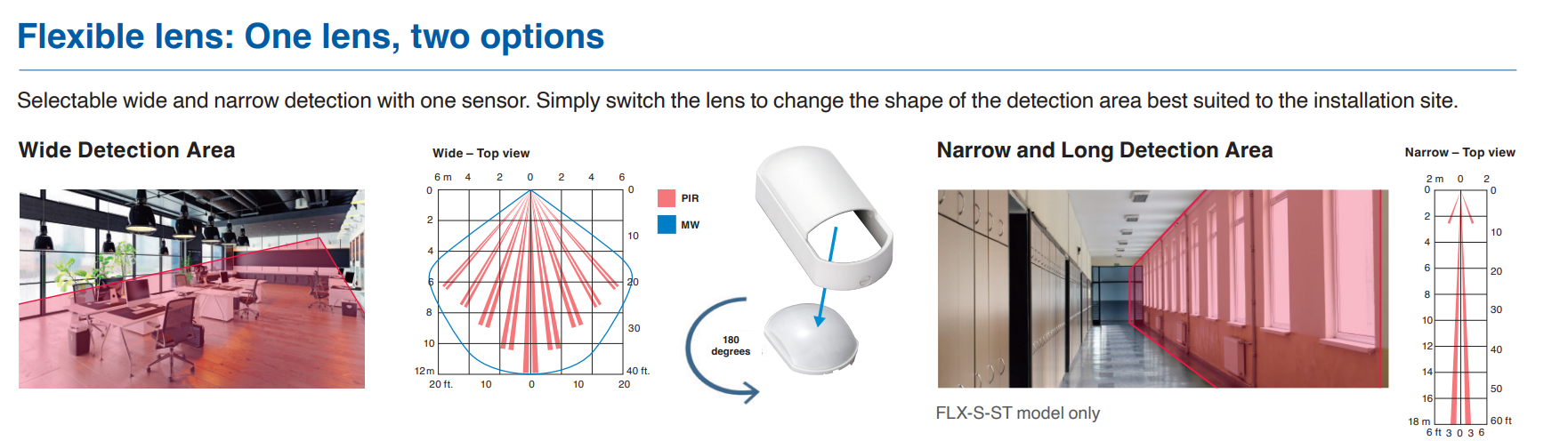

PIR technologyFlexible lens: one lens, two options
Mounting height [mm]From 2 to 3
Min. Mounting height (m)2
Wireless detectorNo
Warranty2 Years

CERTIFICATIONS

EN CertificationEN50131 Grade 2
