RLS-1010L (Indoor only)

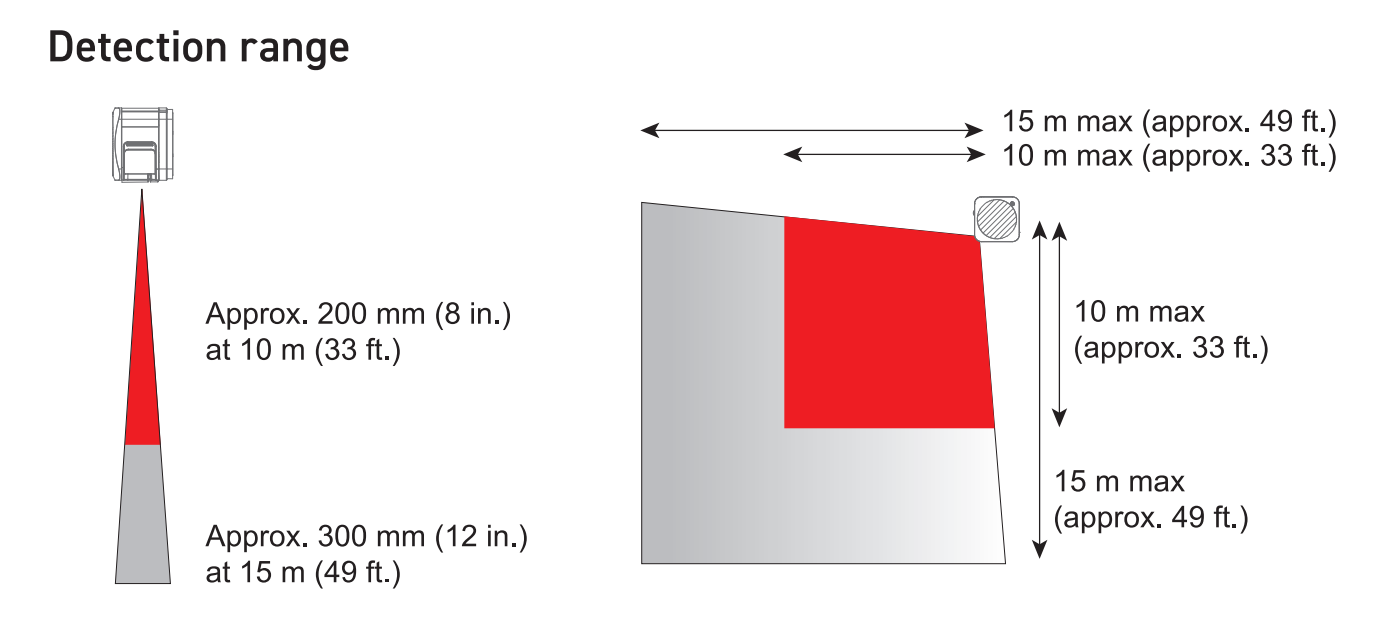

A small 2D LiDAR sensor (Laser Class 1) intended for indoor use is the RLS-1010L. It provides a 10 × 10 m vertical or horizontal detecting area in standard mode. Its unique selling point is the way it combines easy setup and installation with excellent detection performance. Features that simplify the installation procedure, like Auto-Area Correction and Laser scan path visualization, cut down on setup complexity and time.

The RLS-1010L can be used with surveillance cameras to detect intruders, set off alarms, and alert security staff when it is connected with other security systems.

• Automatic Area Correction - The RLS-1010L automatically identifies walls, floors, fences, and other nearby structures after turning on and sets up a suitable detection area.

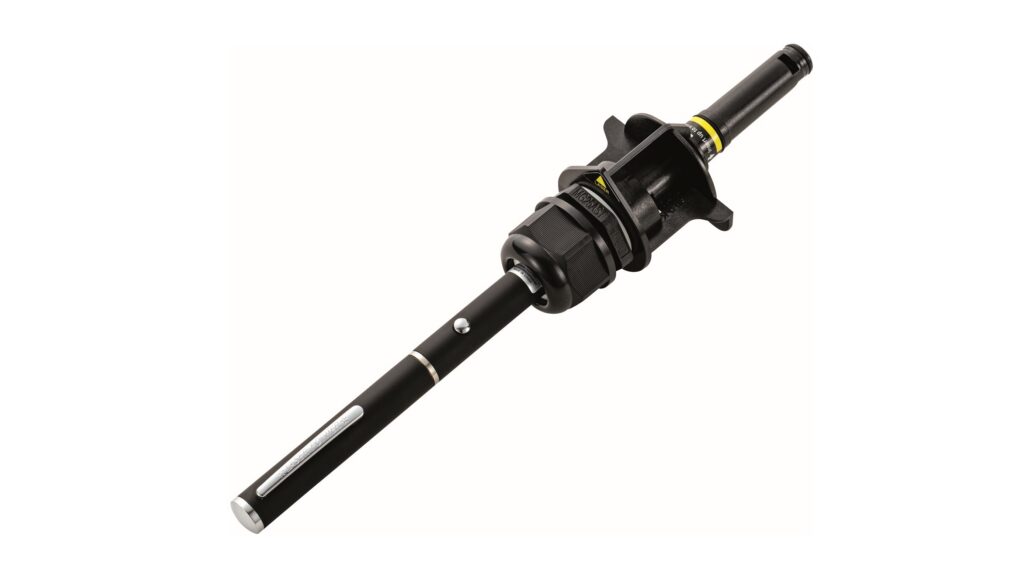

• Visualization of the laser scan path - Traditionally, specialist equipment was needed to change the detecting angle because infrared laser beams are invisible to the human eye. A commercial laser pointer can be used to visualize the detection area for RLS-1010L. Additionally, adjusting the angle is quite easy—just turn the device's dial.
