SS Sensor (Middle Range) TCS Series

TC 100 500 3000 02

SS Sensor (Middle Range) TCS Series

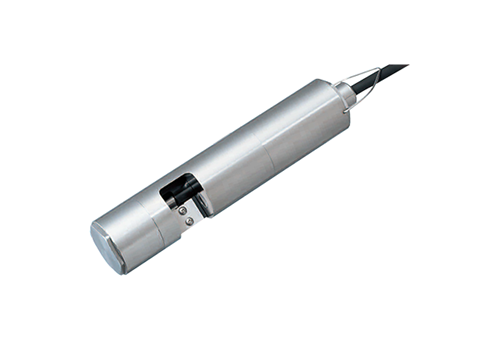

TCS-1000(E) [Sensor],[Parts No. 05057]

  • The built-in wiper system effectively keeps the lenses clean.
  • The optical windows are made of scratch-resistant sapphire glass, which is easy to clean.
  • Its compact design allows for easy integration into any installation site.
  • This sensor is suitable for continuous monitoring of suspended solids. Its analog output (4–20 mA) ensures compatibility with a wide range of equipment and systems.
  • The sensor offers high durability, featuring a robust casing made from stainless steel. It uses 18-15-2.5 Cr-Ni-Mo low-carbon stainless steel, ensuring excellent resistance to corrosion and long-term reliability.
Enquire
Product Details
Key Features

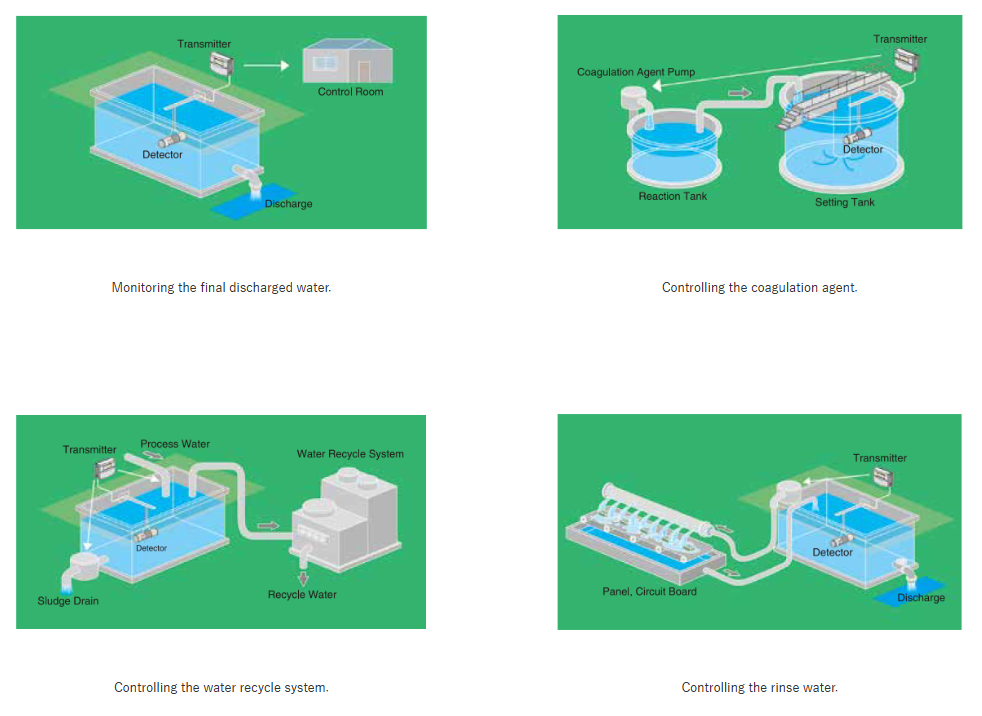

Application
Specifications
Downloads
Option

The TCS-1000(E) sensor is engineered for precise measurement of suspended solids. The sensor is compact enough with the dimension of ⌀32 mm. The sensor features a built-in automatic wiper that keeps the optical surface clean, ensuring reliable, long-term performance with minimal maintenance. This makes it well-suited for continuous monitoring in demanding conditions. The sensor has analog output.

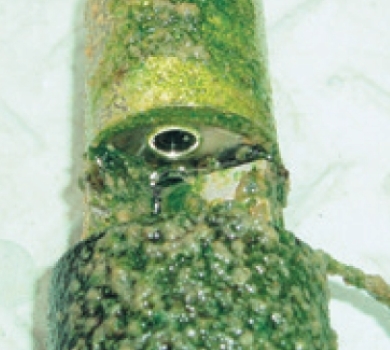

  • The built-in wiper system effectively keeps the lenses clean.

wiper h350

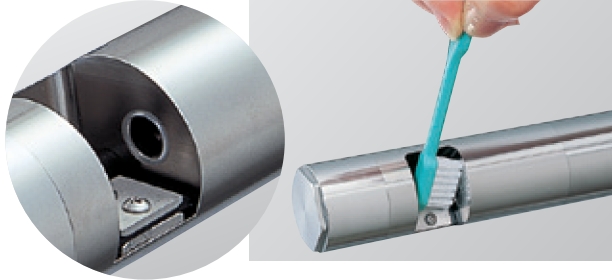

  • The optical windows are made of scratch-resistant sapphire glass, which is easy to clean.

sapphire glass

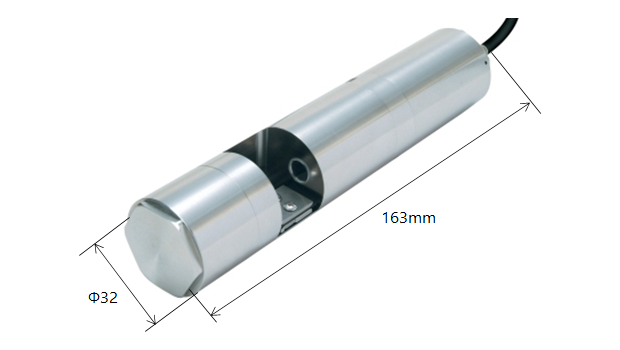

  • Its compact design allows for easy integration into any installation site.

tdphtg0000005vub

  • This sensor is suitable for continuous monitoring of suspended solids. Its analog output (4–20 mA) ensures compatibility with a wide range of equipment and systems.
  • The sensor offers high durability, featuring a robust casing made from stainless steel. It uses 18-15-2.5 Cr-Ni-Mo low-carbon stainless steel, ensuring excellent resistance to corrosion and long-term reliability.

Screenshot 89

Screenshot 90

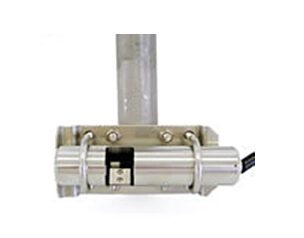

1) Mounting Attachment: TA-1 [Parts No.05039]

img option ta 1 e1752830186773

Mounting the turbidity and SS sensors onto a pipe helps prevent them from colliding with walls or facility equipment, and stops them from rotating—especially useful in fast-flowing water conditions.

Applicable Pipe: Stainless steel pipe (25A, OD 34 mm)

Material: S30400 Note: The installation pipe should be prepared by the customer.

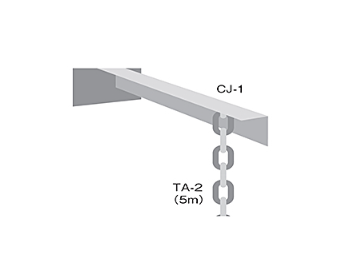

2) Support bracket: CJ-1 Hanging chain: TA-2

Screenshot 79

CJ-1 [Parts No.05033]
TA-2 [Parts No.05067]
It is a metal fitting for hanging the sensor.（CJ-1）
It is a chain for suspending the sensor.（TA-2）

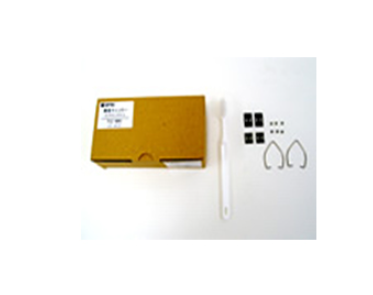

3) Maintenance kit: TC-MK [Parts No.05038]

Screenshot 80

It is a replacement blade of the wiper cleaning device. Please exchange once a year as a guide.
Component
●Wiper blade × 2
●Cleaning brush × 1
●Detection window Cleaning paper × 2
●Manual × 1
