SS Sensor (Middle Range) TS-D Series
SS Sensor (Middle Range) TS-D Series

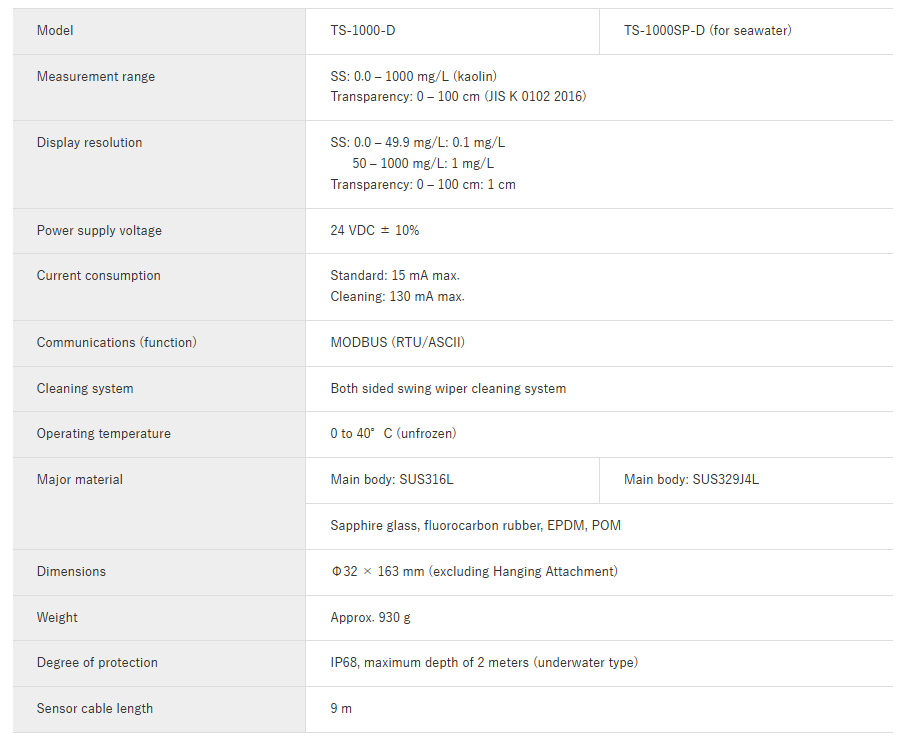

TS-1000-D [Parts No. 05325]
TS-1000SP-D [Parts No. 05326],[for sea water]
- The built-in wiper system effectively keeps the lenses clean.
- The optical windows are made of scratch-resistant sapphire glass, which is easy to clean.
- Its compact design allows for easy integration into any installation site.
The TS-1000-D sensor is designed for accurate measurement of suspended solids with a compact size of ⌀32 mm, it is ideal for installations in smaller spaces. The sensor features a built-in wiper to automatically clean the optical surface, ensuring reliable performance and reducing maintenance in long-term monitoring applications.
- Built-in wiping cleaning system certainly keeps lenses clean. Check and clean the window surface once every month.
- The optical windows are made of scratch-resistant sapphire glass, allowing for easy cleaning and scrubbing without damage.
- The compact design allows for flexible installation in virtually any location.
1) Mounting Attachment: TA-1 [Parts No.05039]
Mounting the turbidity and SS sensors onto a pipe helps prevent them from colliding with walls or facility equipment, and stops them from rotating—especially useful in fast-flowing water conditions.
Applicable Pipe: Stainless steel pipe (25A, OD 34 mm)
Material: S30400 Note: The installation pipe should be prepared by the customer.
2) Support bracket: CJ-1 Hanging chain: TA-2
CJ-1 [Parts No.05033]
TA-2 [Parts No.05067]
It is a metal fitting for hanging the sensor.（CJ-1）
It is a chain for suspending the sensor.（TA-2）
3) Maintenance kit: TC-MK [Parts No.05038]
It is a replacement blade of the wiper cleaning device. Please exchange once a year as a guide.
Component
●Wiper blade × 2
●Cleaning brush × 1
●Detection window Cleaning paper × 2
●Manual × 1
