Turbidity Sensor TC-D Series
Turbidity Sensor TC-D Series

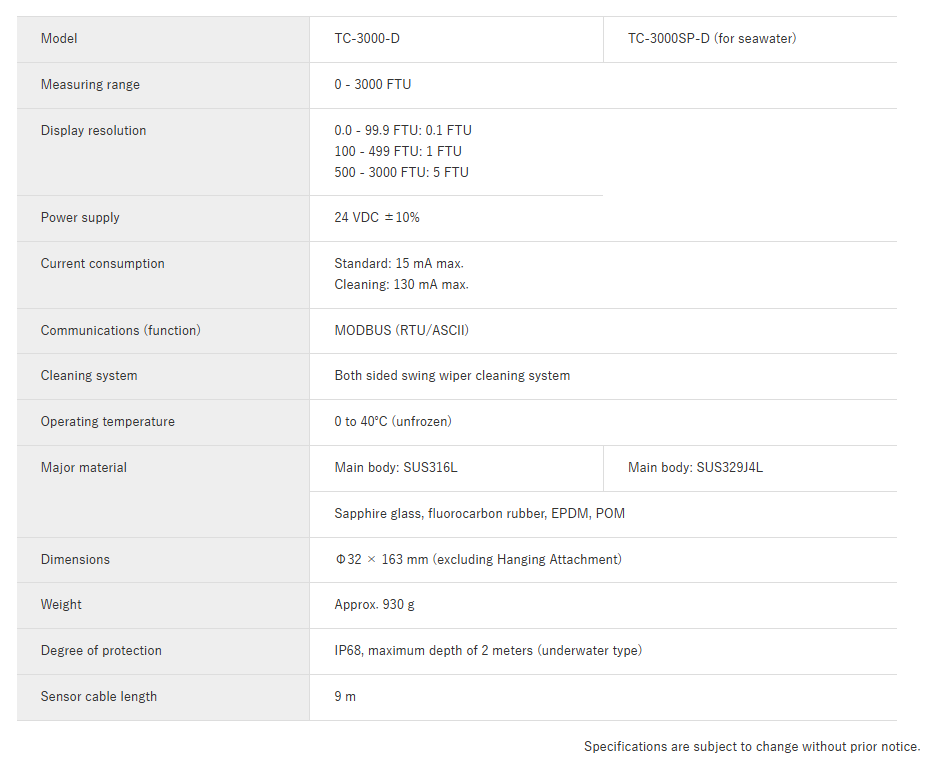

TC-3000-D [Parts No. 05327]
TC-3000SP-D [Parts No. 05328] [for sea water]
- The built-in wiper system effectively keeps the lenses clean.
- The optical windows are made of scratch-resistant sapphire glass, which is easy to clean.
- Its compact design allows for easy integration into any installation site.
The TC-3000-D is a compact, plug-and-play turbidity sensor designed for easy installation. Its automatic resolution detection ensures accurate measurements over a broad turbidity range, making it well-suited for continuous monitoring applications.
- Built-in wiping cleaning system certainly keeps lenses clean. Check and clean the window surface once every month.
- The optical windows are made of scratch-resistant sapphire glass, allowing for easy cleaning and scrubbing without damage.
- The compact design allows for flexible installation in virtually any location.

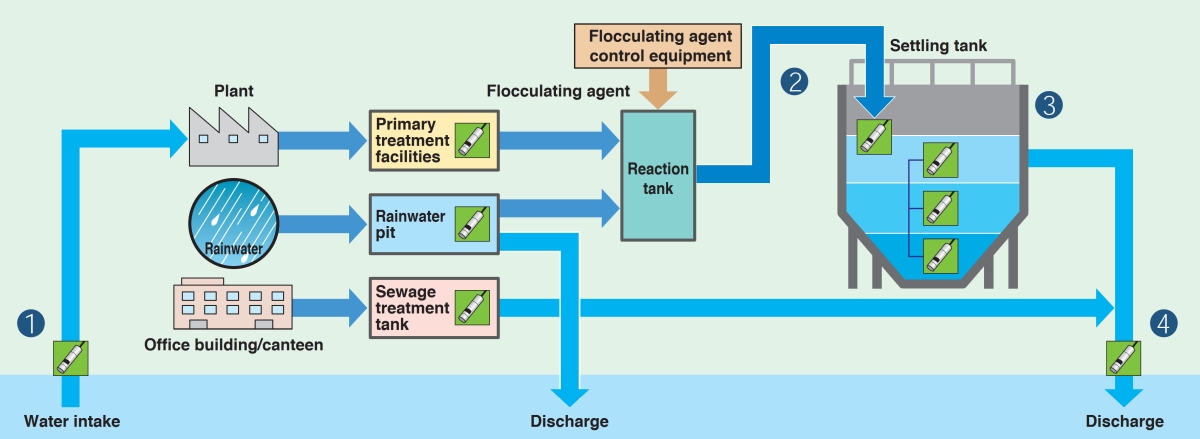

The TC-3000-D can be installed at multiple locations across the factory.
1) Monitoring the acquisition of water used in factory processes
Monitoring turbidity upon water intake helps prevent issues caused by sudden changes in turbidity later in the process.
2) Coagulant control
Accurately determining the concentration of wastewater enables precise dosing of cleaning agents, ensuring stable water quality.
3) Monitoring the sludge-liquid level
Installing sensors in the settling tank enables monitoring of the sludge-liquid interface. Placing sensors at two or three different depths improves surface-level detection and supports effective sludge discharge control.

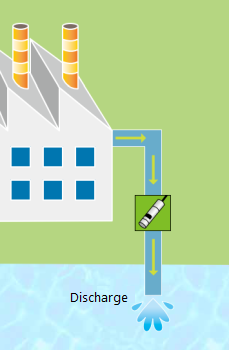

4) Monitoring the final discharged water
This enables final monitoring of the treated water before it is discharged into the river.
1) Mounting Attachment: TA-1 [Parts No.05039]
Mounting the turbidity and SS sensors onto a pipe helps prevent them from colliding with walls or facility equipment, and stops them from rotating—especially useful in fast-flowing water conditions.
Applicable Pipe: Stainless steel pipe (25A, OD 34 mm)
Material: S30400 Note: The installation pipe should be prepared by the customer.
2) Support bracket: CJ-1 Hanging chain: TA-2
CJ-1 [Parts No.05033]
TA-2 [Parts No.05067]
It is a metal fitting for hanging the sensor.（CJ-1）
It is a chain for suspending the sensor.（TA-2）
3) Maintenance kit: TC-MK [Parts No.05038]
It is a replacement blade of the wiper cleaning device. Please exchange once a year as a guide.
Component
●Wiper blade × 2
●Cleaning brush × 1
●Detection window Cleaning paper × 2
●Manual × 1
