Universal Transmitter SC Series
Universal Transmitter SC-U1(E)
[Part No. 05324]
- User-friendly and easy to understand operation.
- 2 sensors can be connected as default.
- A maximum of 4 sensors can be connected via the expansion board.
- Output available as 4-20 mA & RS485.
- 4 number of relays are available and a maximum of 8 can be extended.

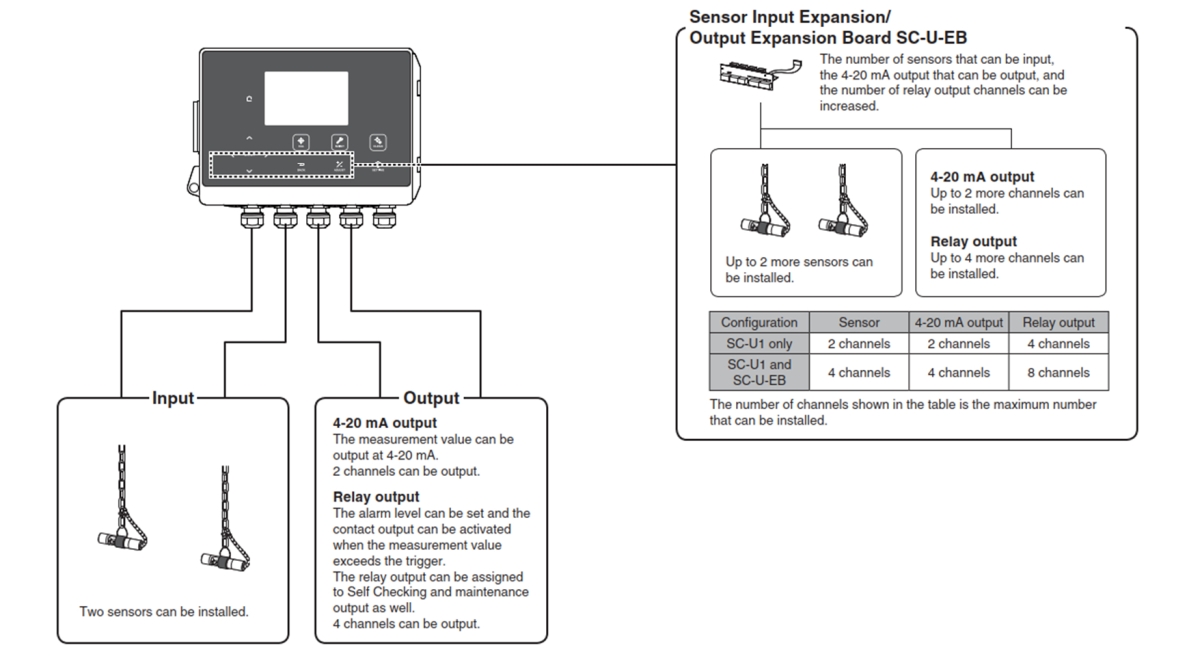

A universal transmitter that is user-friendly and has easy-to-understand operation. By default, it can connect two water quality measurement sensors, and by adding an expansion board, a maximum of four sensors can be connected easily. It has data output provision of 4-20 mA and RS485 as well. Similar four parameters or different four parameters can be chosen to connect to the transmitter as per the requirement. The transmitter also has the ability to fetch the data on the cloud server via our gateway device.

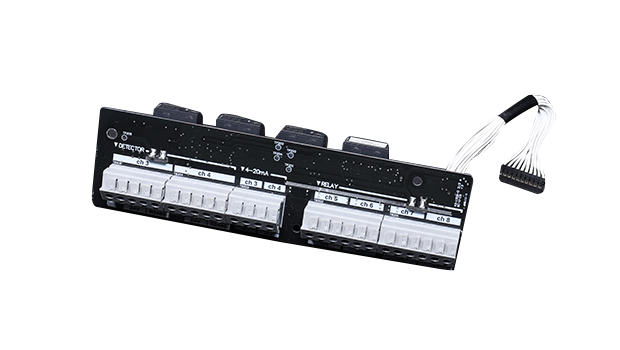

Sensor input expansion/output expansion board：SC-U-EB
[Part No. 05322]
You can add 2 channels of sensor, 2 channels of 4-20 mA output, and 4 channels of relay output when attaching this to SC-U1(E).
